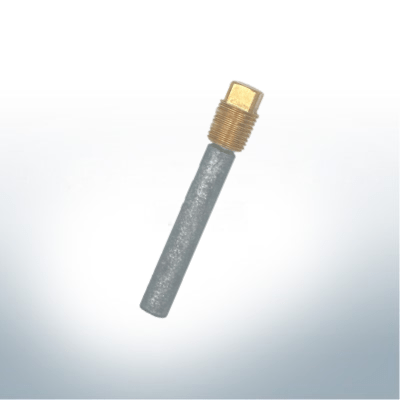

Pin anode & brass sleeve – Caterpillar-Ref: 6L2283 & 6L2282 | (AlZn5In) | 9109AL_M
20,99 €
incl. 19% VAT excl. shipping fee
Version:
Brass sleeve – Ref: 6L2282
Aluminum anode – Ref: 6L2283
Brass part: Caterpillar – 6L2282 – 9912
Aluminum anode only: Pin anode – 9109AL
Dimension anode:
Version: 1/4″ – 20G UNC
Outer diameter in (mm): 10
Length in (mm): 58
Total length in (mm): 65
Weight in (kg): 0.013
Dimensioning socket:
1st external thread: 1/4″ UNC
2nd external thread: 1/4″ NPT
Thread length-outside in (mm): 13
Internal thread length in (mm): 15
Height in (mm): 20
Width across flats in (mm): 10
Weight in (kg): 0.015
Product information
Our sacrificial anodes are manufactured using the permanent mold casting process, as we place the highest value on the purity and quality of our products. Our alloy is already optimally designed for corrosion protection and requires no further adjustment during the manufacturing process. In addition, unlike other manufacturers, we minimize the use of highly toxic substances such as lead and cadmium, as these can enter the ecological cycle of nature when the sacrificial anode decomposes. Our alloy AlZn5In, a mixture of aluminum, 5 % zinc and a small amount of indium, is ideally suited for use in mixed and freshwater environments.
You can find more information on our material composition and how a sacrificial anode works here
Field of application:
Aluminum anodes are ideal for use in fresh and brackish water.
| Weight | 0,03 kg |
|---|---|
| Dimensions | 7,8 × 1 × 1 cm |
