Anode set compatible with Caterpillar 3116 engine | Anode set 21
99,99 €
incl. 19% VAT excl. shipping fee

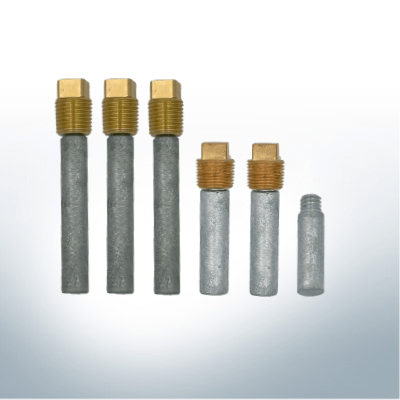

The anode set consists of:
3 x Pin Anode & Brass Sleeve – Caterpillar Ref: 6L2283 | (Zinc) | 9109M
Specifications:
Brass part: Caterpillar – 6L2282 – 9912
Zinc anode only: Pin Anode – 9109
Anode Dimensions:
Type: 1/4″ – 20G UNC
Outer diameter (mm): 10
Length (mm): 58
Total length (mm): 70
Weight (kg): 0.035
Sleeve Dimensions:
1st Outer thread: 1/4″ UNC
2nd Outer thread: 1/4″ NPT
Outer thread length (mm): 13
Inner thread length (mm): 15
Height (mm): 20
Wrench size (mm): 10
Weight (kg): 0.015
2 x Pin Anode & Brass Sleeve 1/2′ NPT Caterpillar Ref: 6L2281 | Ø12.5 / L40 (Zinc) | 9148
Compatible with:
Caterpillar Diesel Engine 3116
Reference Caterpillar Anode: 6L2281
Brass part only: Brass Sleeve – 9908
Zinc anode + brass part: 9148
Anode Dimensions:
Type: 3/8″
Outer diameter (mm): 13
Length (mm): 40
Total length + sleeve (mm): 70
Weight (kg): 0.080
Brass Sleeve Dimensions:
1st Outer thread: 1/2″
Inner thread: 3/8″
Height (mm): 25
Wrench size (mm): 13
1 x Pin Anode 1/4” 20G UNC Ø10/L38 | Caterpillar Ref: 6L3104 | (Zinc) | 9110
Compatible with:
Caterpillar Ref: 6L3104
Dimensions:
Type: 1/4″ 20G UNC
Outer diameter (mm): 10
Length (mm): 38
Total length (mm): 45
Weight (kg): 0.019
Place of use
| Place of use | quanity | Part number Caterpillar |
| Heat exchanger | 3 | 6L2283 |
| oil ccoler | 2 | 6L2281 |
| exhaust manifold | 1 | 6L3104 |
Zinc anode set for use in salt and brackish water, suitable for the following Caterpillar engines:
-
- Complete zinc anode set for the Caterpillar 3116 marine diesel engine
Product Information:
Outstanding performance and reliability are our trademarks. Our zinc anodes are manufactured with maximum zinc content to maximize their anodic protection effect. Through a specially developed casting process, we achieve this optimal zinc content, as the conventional die-casting method is not feasible with technically pure zinc (Zn99.995). Unlike many other manufacturers, we minimize highly toxic substances such as lead and cadmium. This measure significantly contributes to preventing harmful residues from entering the natural cycle, resulting in a significant reduction in environmental impact.
For more information on our material composition and the functioning of a sacrificial anode, please click here.
Application Area:
Zinc anodes are ideal for use in salt and brackish water.
| Weight | 0,9 kg |
|---|---|
| Dimensions | 0,7 × 0,7 × 0,2 cm |
