Anode Set Compatible with Caterpillar 3126 Engine | Anode Set 20
119,99 €
incl. 19% VAT excl. shipping fee

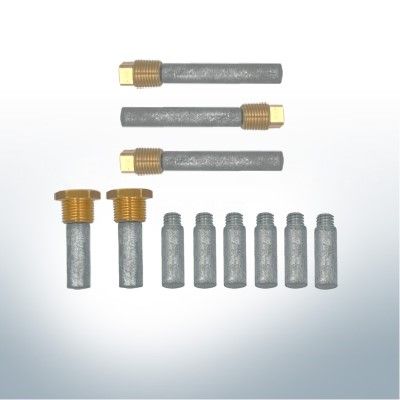

The anode set consists of:

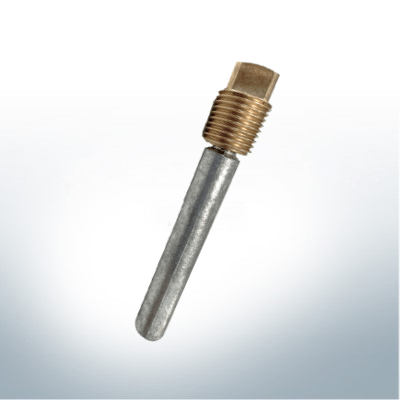

3 x Pin Anode & Brass Sleeve – Caterpillar Ref: 6L2283 | (Zinc) | 9109M
Version:
Brass sleeve only – 9912
Zinc anode only – 9109
Set consisting of pin anode and brass sleeve – 9109M

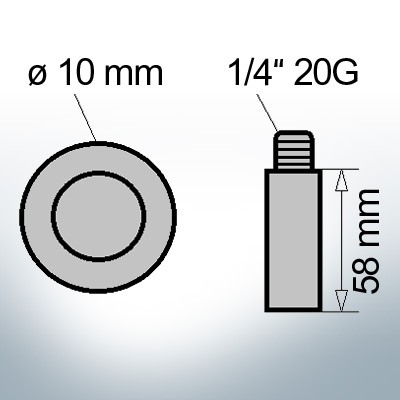

Anode Dimensions:
Type: 1/4″ – 20G UNC
Outer diameter in (mm): 10
Length in (mm): 58
Total length in (mm): 70
Weight in (kg): 0.035
Sleeve Dimensions:
1. Male Thread: 1/4″ UNC
2. Male Thread: 1/4″ NPT
External Thread Length in (mm): 13
Internal Thread Length in (mm): 15
Height in (mm): 20
Wrench Size in (mm): 10
Weight in (kg): 0.015
2 x Pin Anode & Brass Sleeve 1/2′ NPT Caterpillar Ref: 6L2281 | Ø12 / L40 (Zinc) | 9158M
Compatible with:
Caterpillar 3116 diesel engine
Caterpillar anode part number: 6L2281
Version:
Brass sleeve only: 9902
Zinc anode only: 9158
Set consisting of pin anode and brass sleeve: 9158M
Dimensions – Anode:
Thread in (inches): 3/8″-16 (UNC)
Outer diameter in (mm): 12
Length in (mm): 33
Total length in (mm): 40
Weight in (kg): 0.037
Dimensions – Brass Component:
Internal thread: 3/8″ UNC
External thread: 3/8″ NPT
Thread length: 11
Height in (mm): 17
Wrench size in (mm): 14

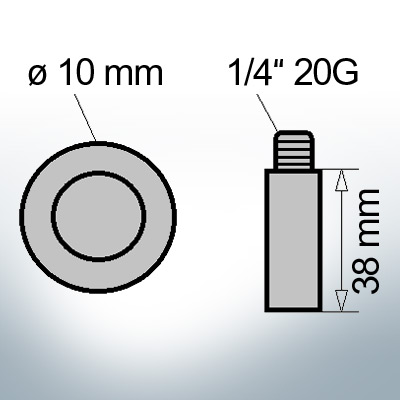

6 x Pin Anodes 1/4” 20G UNC Ø10/L38 | Caterpillar Ref: 6L3104 | (Zinc) | 9110
Here you will find only the zinc anode: 9110
Compatible with:
Caterpillar Ref: 6L3104
Dimensions:
Type: 1/4″ 20G UNC
Outer diameter in (mm): 10
Length in (mm): 38
Total length in (mm): 45
Weight in (kg): 0.019
Place of Use
| Location | Quantity | Caterpillar Part Number |
| Heat Exchanger | 3 | 6L2283 |
| Oil Cooler | 2 | 6L2281 |
| Intercooler | 5 | 6L3104 |
| Exhaust Manifold | 1 | 6L3104 |
Zinc anode set for use in salt and brackish water, suitable for the following Caterpillar engines:
-
- KompletComplete zinc anode set for the Caterpillar 3126 – marine diesel engine
- Note: Not suitable for the Caterpillar 3126B.
- KompletComplete zinc anode set for the Caterpillar 3126 – marine diesel engine
Product Information:
Outstanding performance and reliability are our hallmarks. Our zinc anodes are manufactured with a maximum zinc content to maximize their anodic protection. We achieve this optimal zinc content through a specially developed casting process, as the conventional die-casting method is not feasible with technically pure zinc (Zn99.995). Unlike many other manufacturers, we focus on minimizing highly toxic substances such as lead and cadmium. Through this measure, we play a significant role in ensuring that no harmful residues enter the natural cycle. The result: a significant reduction in environmental impact.
For more information on our material composition and how a sacrificial anode works, click here
Applications:
Zinc anodes are ideal for use in saltwater and brackish water.
| Weight | 0,9 kg |
|---|---|
| Dimensions | 0,7 × 0,7 × 0,2 cm |
