Anode set compatible with Caterpillar 3208 engine – V32 | Anode set 18

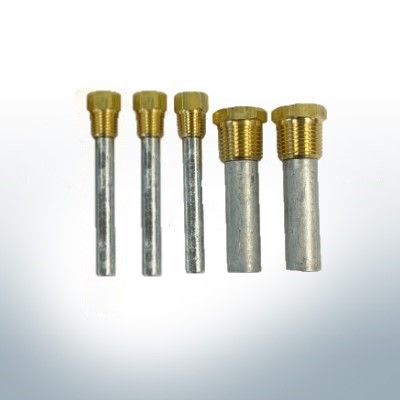

The anode set consists of:

-> The respective brass parts and the following anodes

-> Complete zinc anode set for the Caterpillar 3208 marine diesel engine, equipped with a 7C-3114 engine heat exchanger and a 7W-1396 marine transmission oil cooler.

2x pin anodes 3/8” Ø16/L50 (zinc) | MG-Duff Ref: 105822 & CAT-Ref: 6L2288 | 9122M

Compatible with:
MG-Duff Ref: 105822
CAT-Ref: 6L2288

This is a set consisting of anode and brass part.

Individual components:
Brass sleeve: 9908
Pin anode: 9122
Set consisting of brass sleeve & pin anode: 9122M

Dimensioning anode:
Version: 3/8″
Outer diameter in (mm): 16
Length in (mm): 50
Total length in (mm): 60
Weight in (kg): 0.091

Dimensioning brass socket:
1st external thread: 1/2″
2nd internal thread: 3/8″
Height in (mm): 25
Width across flats in (mm): 13

3x pin anode 1/4” 20G UNC compatible with Caterpillar ref: 6L2283 | Ø10/L58 (zinc) | 9109M

Version:
Original-Ref: 6L2283

This is a set consisting of anode and brass part.

Individual components:
Brass sleeve: 9912
Pin anode: 9109
Set consisting of brass sleeve and pin anode: 9109M

Dimensioning anode:
Version: 1/4″ – 20G UNC
Outer diameter in (mm): 10
Length in (mm): 58
Total length in (mm): 70
Weight in (kg): 0.035

Dimension brass socket:
1st external thread: 1/4″ UNC
2nd external thread: 1/4″ NPT
Thread length-outside in (mm): 13
Internal thread length in (mm): 15
Height in (mm): 20
Width across flats in (mm): 10
Weight in (kg): 0.015
