Anode set compatible with Caterpillar 3208 engine – V122 | Anode set 14
69,99 €
incl. 19% VAT excl. shipping fee
4 in stock (can be backordered)

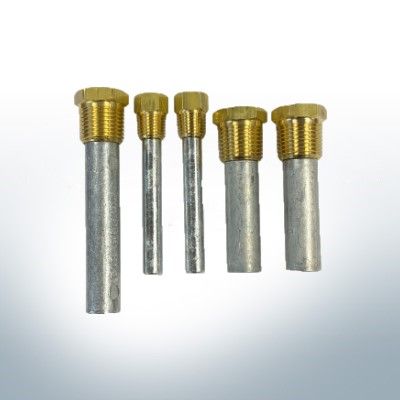

The anode set consists of:

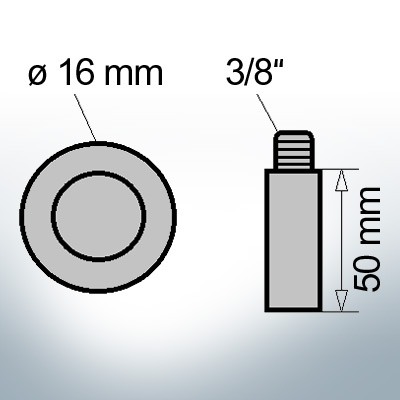

2x pin anodes & brass socket – 3/8” Ø16/L50 (zinc) | MG-Duff Ref: 105822 & CAT-Ref: 6L2288 | 9122M
Individual components:
Brass socket: Caterpillar – 5B9169 – 9908
Zinc anode: Pin anode – 9122
Compatible with:
MG-Duff Ref: 105822
CAT-Ref: 6L2288
Dimension anode:
Version: 3/8″
Outer ø in (mm): 16
Length in (mm): 50
Total length in (mm): 60
Weight in (kg): 0.091
Dimensioning brass socket:
1st external thread: 1/2″
2nd internal thread: 3/8″
Height in (mm): 25
Width across flats in (mm): 13
Click here to jump to the article

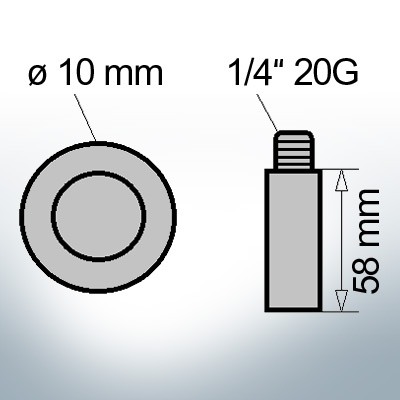

2x pin anode 1/4” 20G UNC compatible to Caterpillar-Ref: 6L2283 | Ø10/L58 (zinc) | 9109M
Individual components:
Brass sleeve: Caterpillar – 6L2282 – 9912
Zinc anode: Pin anode – 9109
Compatible with:
Original Ref: 6L2283
Dimension anode:
Version: 1/4″ – 20G UNC
Outer diameter in (mm): 10
Length in (mm): 58
Total length in (mm): 70
Weight in (kg): 0.035
Dimension brass socket:
1st external thread: 1/4″ UNC
2nd external thread: 1/4″ NPT
Thread length-outside in (mm): 13
Internal thread length in (mm): 15
Height in (mm): 20
Width across flats in (mm): 10
Weight in (kg): 0.015
Click here to jump to the article

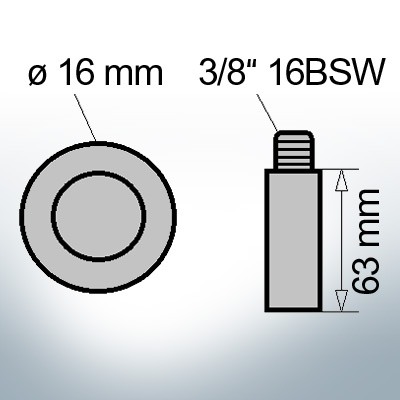

1x pin anodes 3/8” 16BSW Ø16/L63 | Caterpillar-Ref: 6L2289 | (zinc) | 9108M
Individual components:
Brass socket: Caterpillar – 5B9169 – 9908
Zinc anode: Pin anode – 9108
Compatible with:
CAT-Ref: 6L2289
Dimension Anode:
Version: 3/8″
Outer diameter in (mm): 16
Length in (mm): 63
Total length in (mm): 74
Weight in (kg): 0.096
Dimensioning brass socket:
1st external thread: 1/2″
2nd internal thread: 3/8″
Height in (mm): 25
Width across flats in (mm): 13
Click here to jump to the article
Product information:
Outstanding performance and reliability are our hallmarks. Our zinc anodes are manufactured with a maximum zinc content to maximise their anodic protection. We use a specially developed casting process to achieve this optimum zinc content, as the conventional die-casting method is not practical for technically pure zinc (Zn99.995). In contrast to many other manufacturers, we focus on minimising highly toxic substances such as lead and cadmium. Through this measure, we make a significant contribution to ensuring that no harmful residues enter the natural cycle. The result: a significant reduction in environmental pollution.
You can find more information on our material composition and how a sacrificial anode works here.
Field of application:
Zinc anodes are ideal for use in salt and brackish water.
The anode set consists of:
1 x 9108M
2 x 9109M
2 x 9122M
Zinc anode kit suitable for the following Caterpillar engines:
- Complete zinc anode kit for the Caterpillar 3208 – V122 diesel engine with a 4W-9164 engine heat exchanger and a 7W-1396 marine transmission oil cooler.
| Weight | 2,41 kg |
|---|
